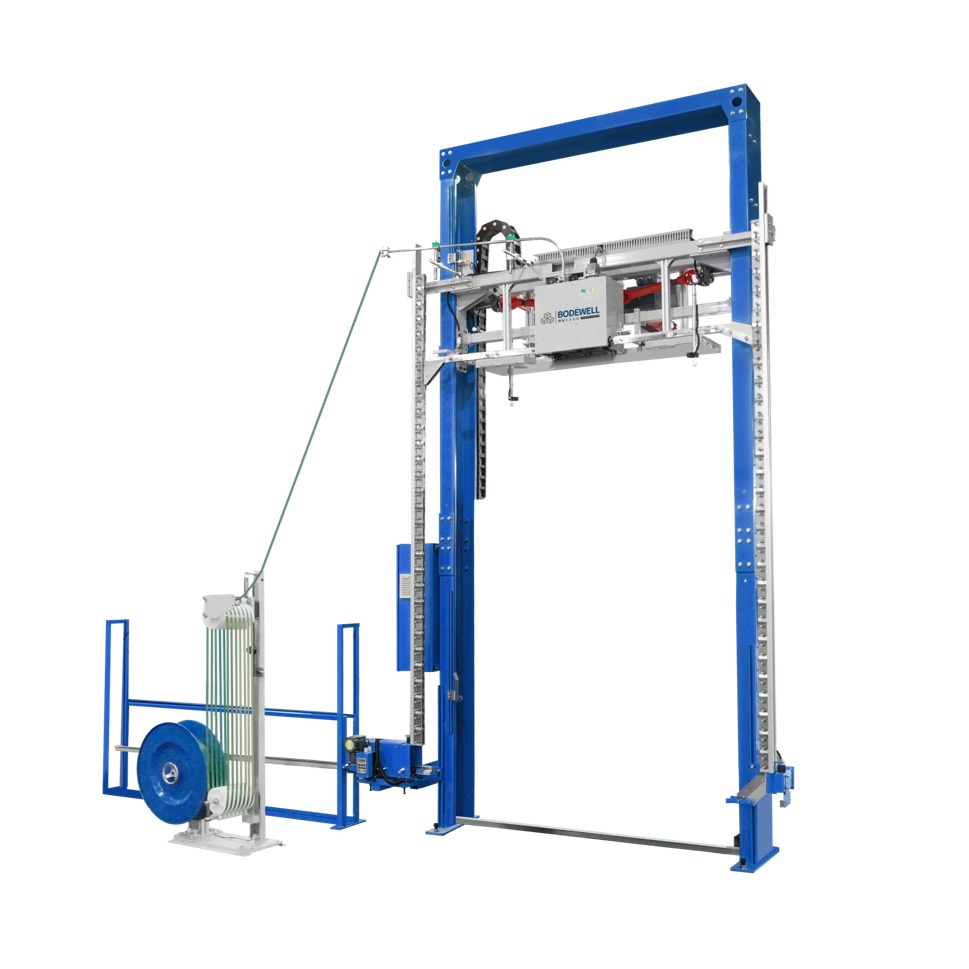

Application Scenario: Fully inline automatic pallet strapping for goods of different heights.
Top-mounted strapping head:
Located at top, adapts to various goods heights – no frequent adjustments..
Custom frame on demand:
Ideal for high-volume, multi-specification strapping (e.g., logistics, fiber).
Strap feeding (optional):
Continuous operation without stopping for strap changes – reduces consumable waste.
Expandable functions:
Supports upgrades like automatic corner protection and tension adjustment – highly adaptable.
| Item | Parameter |
|---|---|
| Applicable cargo dimensions | L(800-1200)×W(800-1200)×H(500-2000)mm (cargo height + conveyor height ≤ 2800 mm) |
| Lance height | 350-1000mm(Tailor-made) |
| Lance cross-sectional area | 30X50mm(19mmPET strap:30X60mm) |
| Power | 2.2KW |
| Tension force | 0-2500N/0-3500N |
| PET strap specification | 1206、1608、1910 |
| Column width | 2000mm、2200mm |
| Passable height | ＜2800mm(cargo height + conveyor height) |
| Machine weight | 1.2T |
| CT time | 15S |
