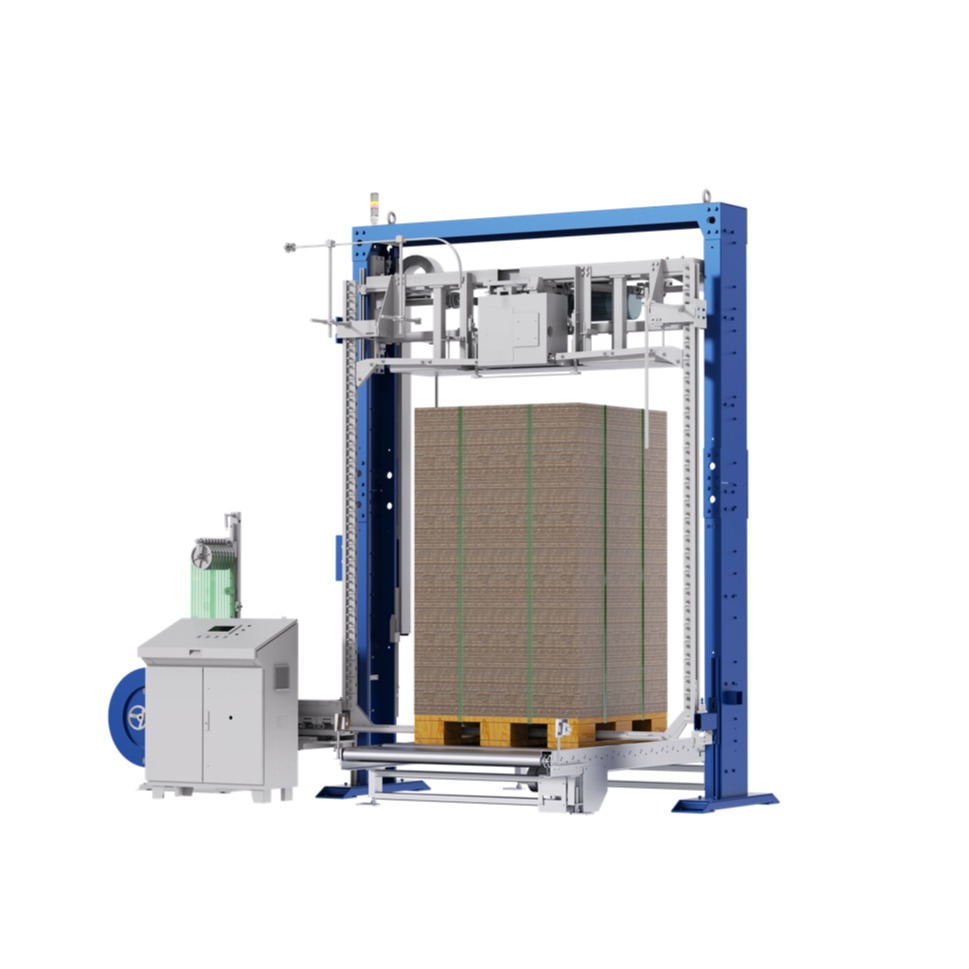

Vertical Strapping System
Single Head
Application Scenario: Suitable for fluffy goods
Powerful Pressing Mechanism:
Gear-rack driven top plate, max 4 tons – compresses fluffy materials for tight, safe strapping.
Wide Applicability:
Designed for fluffy goods: powder materials, fiber, corrugated, flat paper.
Multi-head Expansion:
Upgradeable to 2, 3, or 4 strapping heads to boost efficiency based on production needs.
Rotary Mechanism (optional):
Enables multi-angle strapping.
| Item | Parameter |
|---|---|
| Applicable cargo dimensions | L(800-1200)×W(800-1200)×H(500-2000)mm (cargo height + conveyor height ≤ 3000 mm) |
| Lance height | 350-1000mm (tailor-made) |
| Lance cross-sectional area | 30×50mm |
| Power | 3KW |
| Compressed air | 50L/min 0.4-0.6MPa |
| Tension force | 0-2500N/0-3500N |
| PET strap specification | 1206、1608 |
| Column width | 2000mm、2200mm |
| Passable height | ＜3000mm (cargo height + conveyor height) |
| Machine weight | 2T |
| CT time | 25S |
