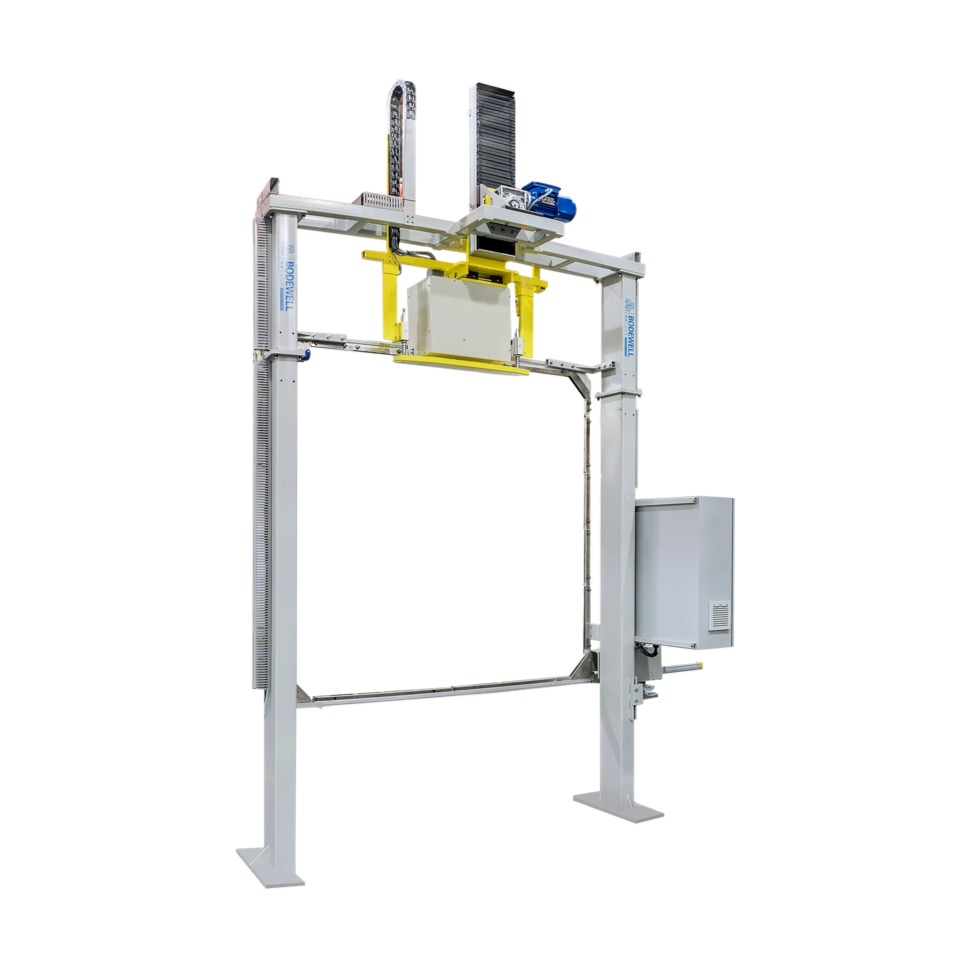

Application Scenario: Standard goods with fixed height
Fixed height strapping:
Strapping position is fixed and cannot be adjusted.
High cost performance:
Structure is streamlined, economical and practical.
| Item | Parameter |
|---|---|
| Applicable cargo dimensions | W(800-1200)×H(500-1500)mm (cargo height + conveyor height ≤ 2000 mm), with allowable height variation of cargo within 300 mm |
| Lance height | 350-1000mm (tailor-made) |
| Lance cross-sectional area | 30×50mm |
| Power | 1.5KW |
| Tension force | 0-2500N/0-3500N |
| PET strap specification | 1206、1608 |
| Column width | 2000mm、2200mm |
| Passable height | 2000mm (cargo height + conveyor height) |
| Machine weight | 0.8T |
| CT time (1 strap) | 18S |
