Products

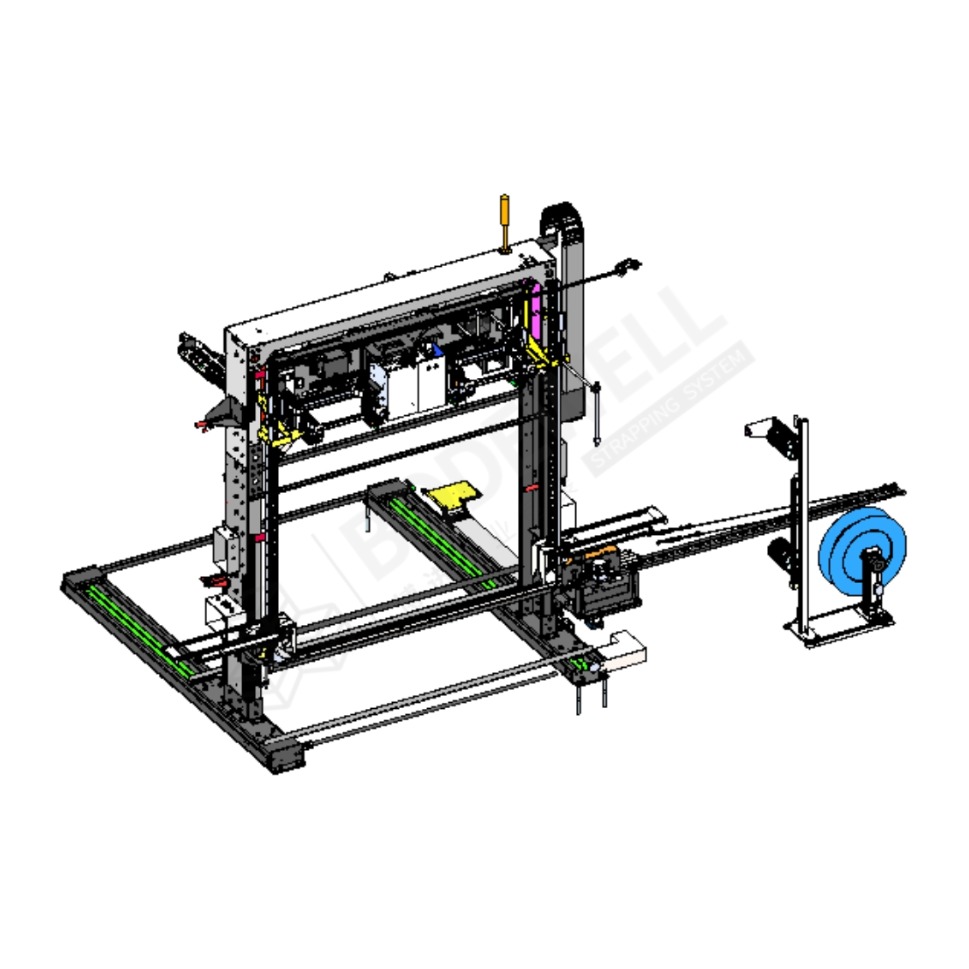

Vertical Strapping System
Single Head
Applicable Scenario: Suitable for goods requiring edge protection of varying widths.
Automatic protect corner Allocation:
Electric mechanism adapts to various widths for automatic corner placement.
Effective Edge Protection:
Prevents corner damage during strapping, reducing transportation damage.
| Item | Parameter |
|---|---|
| Applicable cargo dimensions | L(800-1200)×W(800-1200)×H(500-1350)mm |
| Lance height | 500-600mm |
| Lance cross-sectional area | 30×50mm |
| Power | 2.5KW |
| Compressed air | 200L/min 0.4-0.6MPa |
| Tension force | 0-2500N |
| PET strap specification | 1608 |
| Column width | 2200mm |
| Passable height | 2150mm (cargo height + conveyor height) |
| Machine weight | 1.3T |
| CT time | 110S/pallet (for “#” type strapping) |
| Corner protector magazine capacity | 100PCS |
| Corner protector size | (75-100、120-150)×50×50×(3-5)mm |
