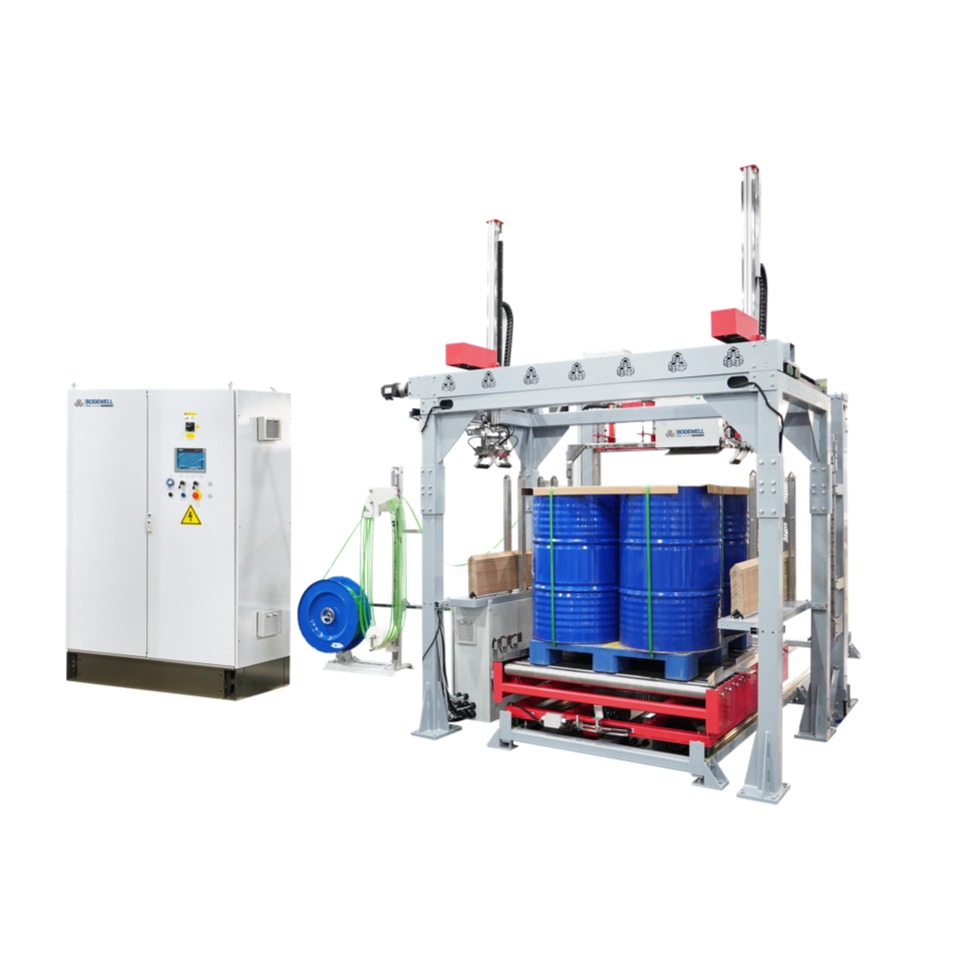

Vertical Strapping System
Single Head
Application Scenario: Consistent cargo size with high strapping efficiency requirements.
Electric Long Corner Protection Mechanism:
Designed for high size consistency – enables efficient corner placement.
Applicable Industries:
Fiber, building materials, chemical, and other large-scale, fast-paced production scenarios.
Efficient Production
Supports continuous operation, improving overall packaging efficiency.
| Item | Parameter |
|---|---|
| Applicable cargo dimensions | L1200×W1200×H(800-1350)mm |
| Lance height | 600-800mm |
| Lance cross-sectional area | 30×50mm |
| Power | 3.5KW |
| Compressed air | 300L/min 0.4-0.6MPa |
| Tension force | 1038 KG |
| PET strap specification | 1608 |
| Column width | 2000mm/2200mm |
| Passable height | 2150mm (cargo height + conveyor height) |
| Machine weight | 2.8T |
| CT time | 130S/pallet (for “#” type strapping) |
| Corner protector magazine capacity | 100pcs |
| Corner protector size | (700-1200)×50×50×5mm |
