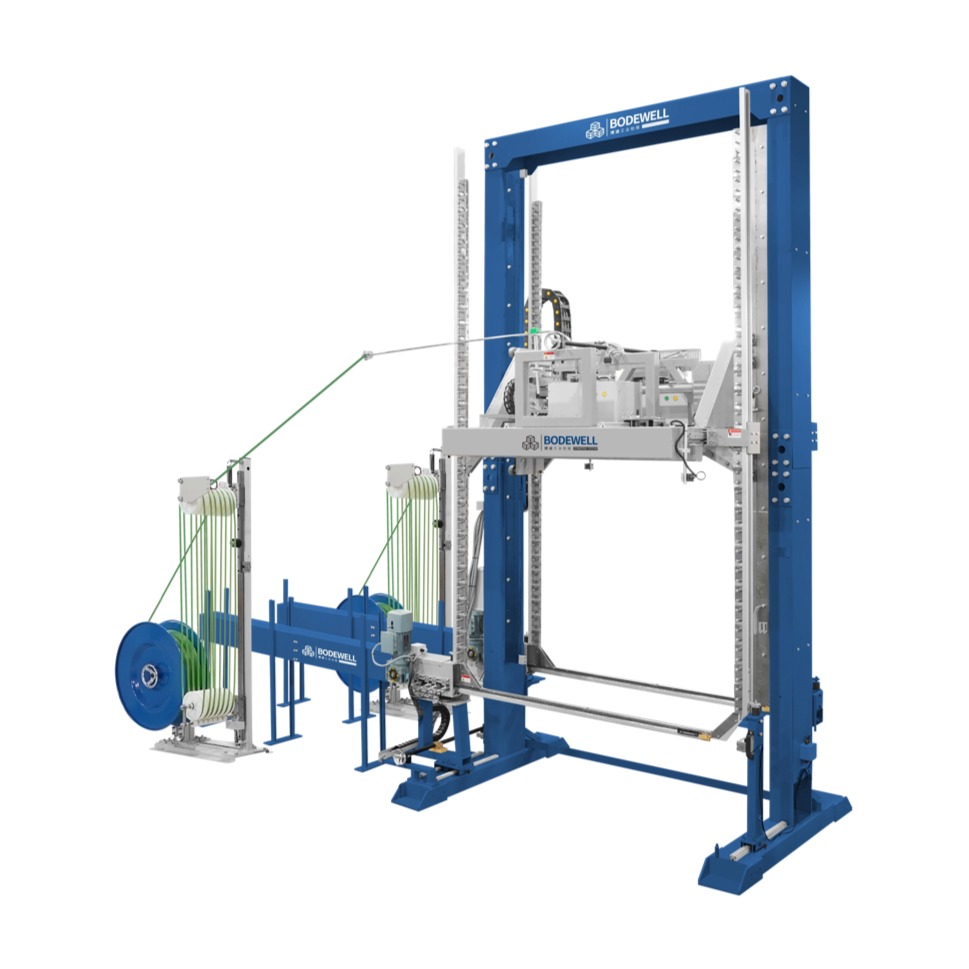

Vertical Strapping System
Multiple Head
Application Scenario: High-efficiency strapping for corrugated, cartons, bottled water, ton bags, etc.
High-pressure compaction:
4-ton pressure plate ensures compact goods and stable strapping.
Roller-type rotating table (optional):
Rotating mechanism for cross strapping of Chuan-type pallets.
38ed066d0c5fea24bc7c16556f3f4b42f1a42a31.jpg)
| Item | Parameter |
|---|---|
| Applicable cargo dimensions | L(800-1200)×W(800-1200)×H(500-2000)mm (cargo height + conveyor height ≤ 3000 mm) |
| Lance height | 350-1000mm (tailor-made) |
| Lance cross-sectional area | 30×50mm |
| Power | 3KW |
| Compressed air | 50L/min 0.4-0.6MPa |
| Tension force | 0-2500N/0-3500N |
| PET strap specification | 1206、1608 |
| Column width | 2000mm、2200mm |
| Passable height | ＜3000mm (cargo height + conveyor height) |
| Machine weight | 2.3T |
| CT time | 25S |
