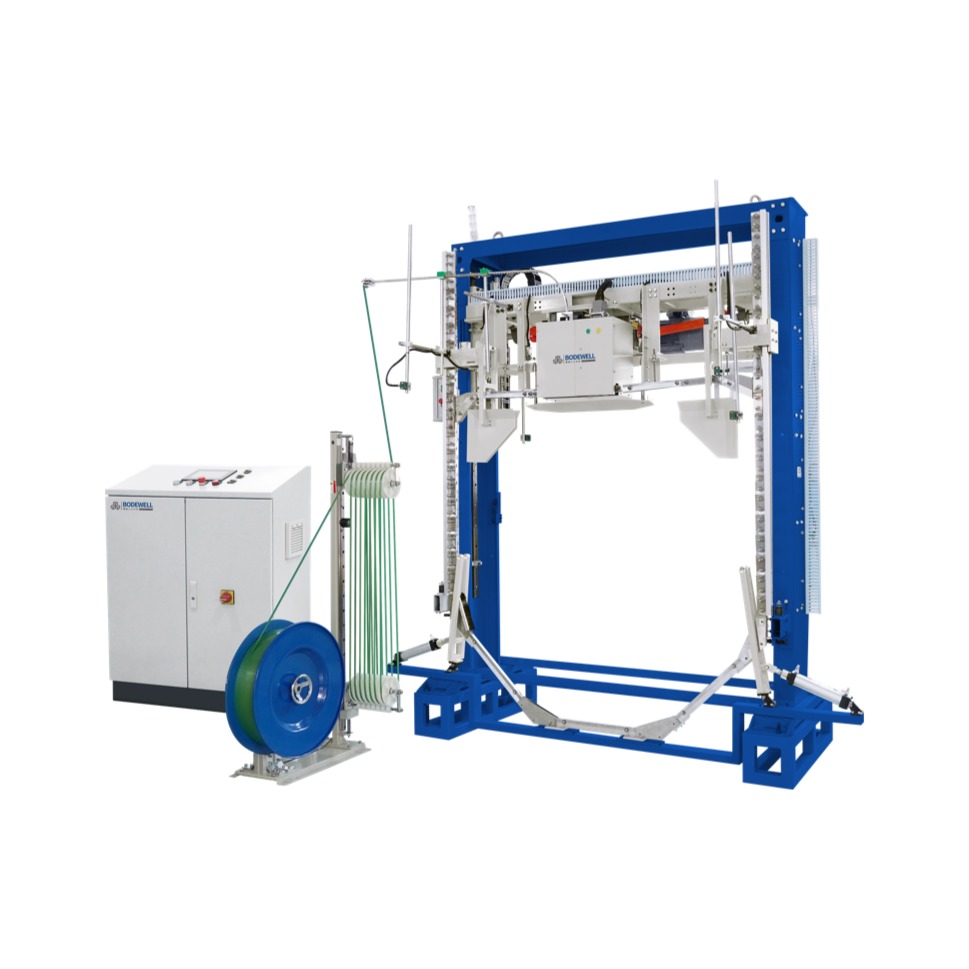

Application Scenario: Designed for raw paper after slitting in the papermaking industry – matches standard sizes.
Quick Integration:
Easily integrated into existing production lines for rapid production startup.
Upgrade Services:
Offer upgrade services for old machine strapping heads, extending the life cycle of the equipment.
| Item | Parameter |
|---|---|
| Paper roll size | Φ800-1250mm |
| Power | 2.2KW |
| Compressed air | 100L/min 0.4-0.6MPa |
| Tension force | 0-2500N |
| PET strap specification | 1206 |
| Passable height | 1600mm |
| Machine weight | 1.3T |
| CT time | 15S |
