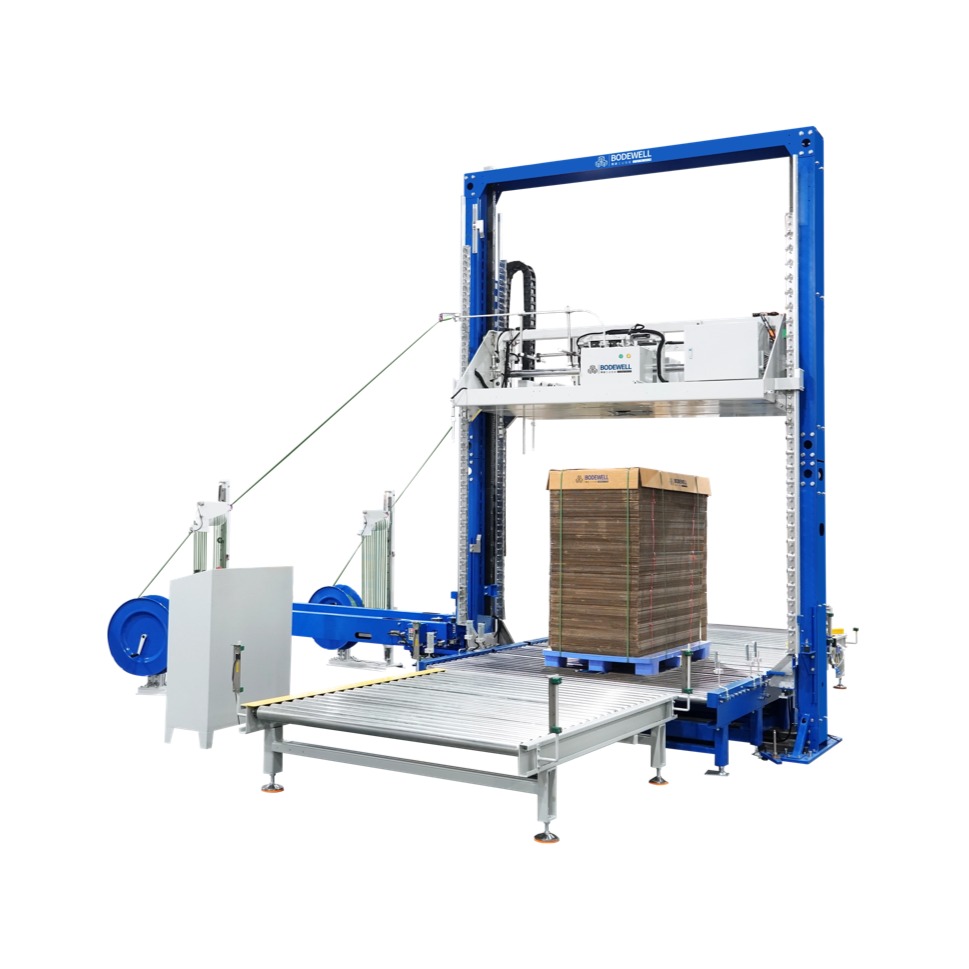

Application Scenario: Special machine for the corrugated cardboard/box industry.
High-pressure compaction:
The pressure of the pressing plate can reach 4 tons, ensuring that the binding is tight and stable.
Cross-lift rotary table:
Suitable for use with or without pallets, compatible with various types of pallets.
| Item | Parameter |
|---|---|
| Applicable cargo dimensions | L1400×W1000×H2750mm |
| Lance height | 500mm |
| Lance cross-sectional area | 30×50mm |
| Power | 3KW |
| Compressed air | 200L/min 0.4-0.6MPa |
| Tension force | 0-2500N |
| PET strap specification | 1206/1608 |
| Rotation diameter | 1600mm |
| Passable height | 2750mm |
| Machine weight | 2.8T |
| CT time | 75S (4 straps incl. infeed/outfeed) |
| Press plate pressure | 0-3T |
