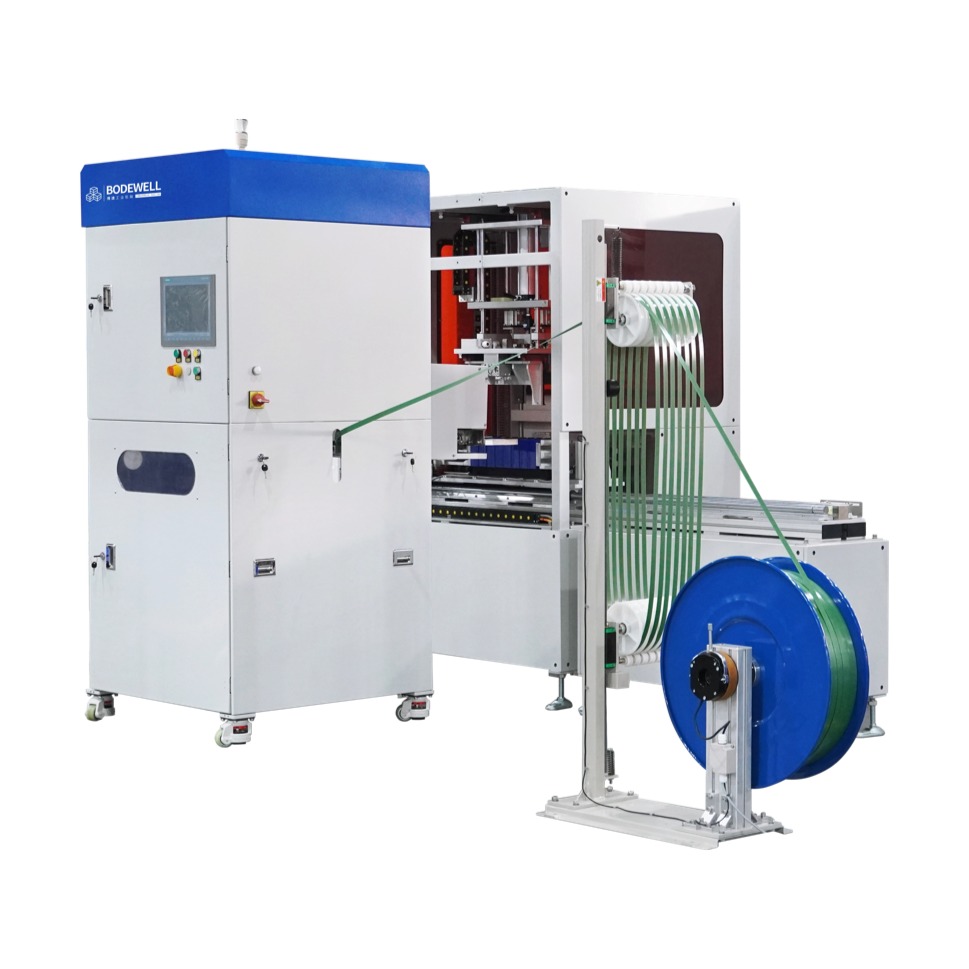

Off‑line Lithium Battery Module Strapping Machine

Off‑line Lithium Battery Module Strapping Machine

Application Scenario: Automatic strapping for manual stacking scenarios.

One-stop Operation:

Single workstation realizes the entire process of automatic centering, shaping, and strapping, simplifying engineering connections and improving efficiency.

Customizable Parameters:

Flexible adjustment of strapping parameters, compatible with various types of PET straps.

Servo Precision Control:

Tension servo adjustment, precisely controlling the strapping force, ensuring safe, stable, and efficient production of battery modules.

Off‑line Lithium Battery Module Strapping Machine

Applicable Industries

HSX-002LiC Technical Specifications

ItemParameter
Applicable module sizeL1000×W180×H210mm
PET strap specification19127
Seal strength75%
Tension force0-3500N
Machine weight1.7T
CT time12S (1 strap)
Power0.75KW


Dimension Drawing

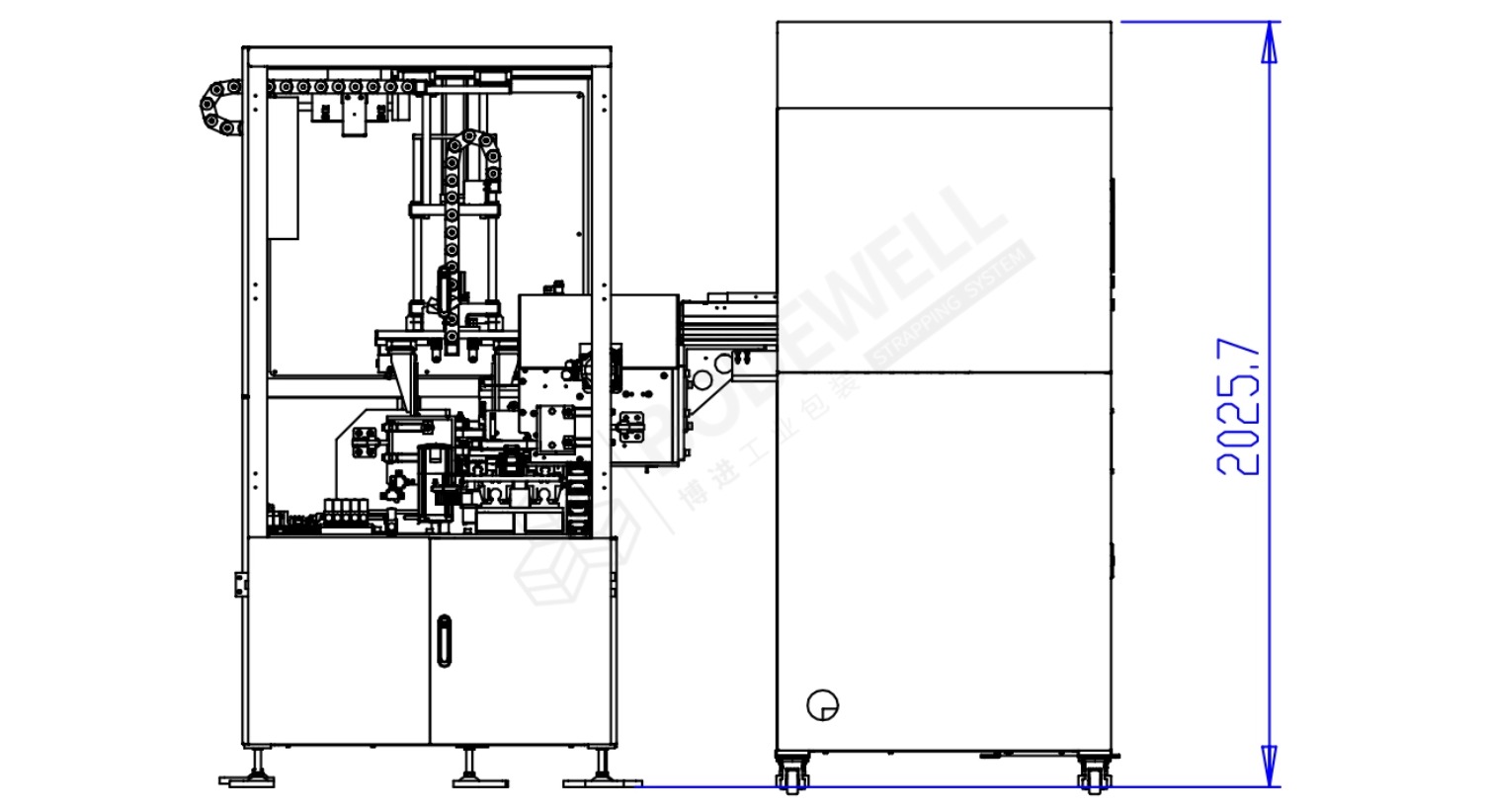

Side View

Side View

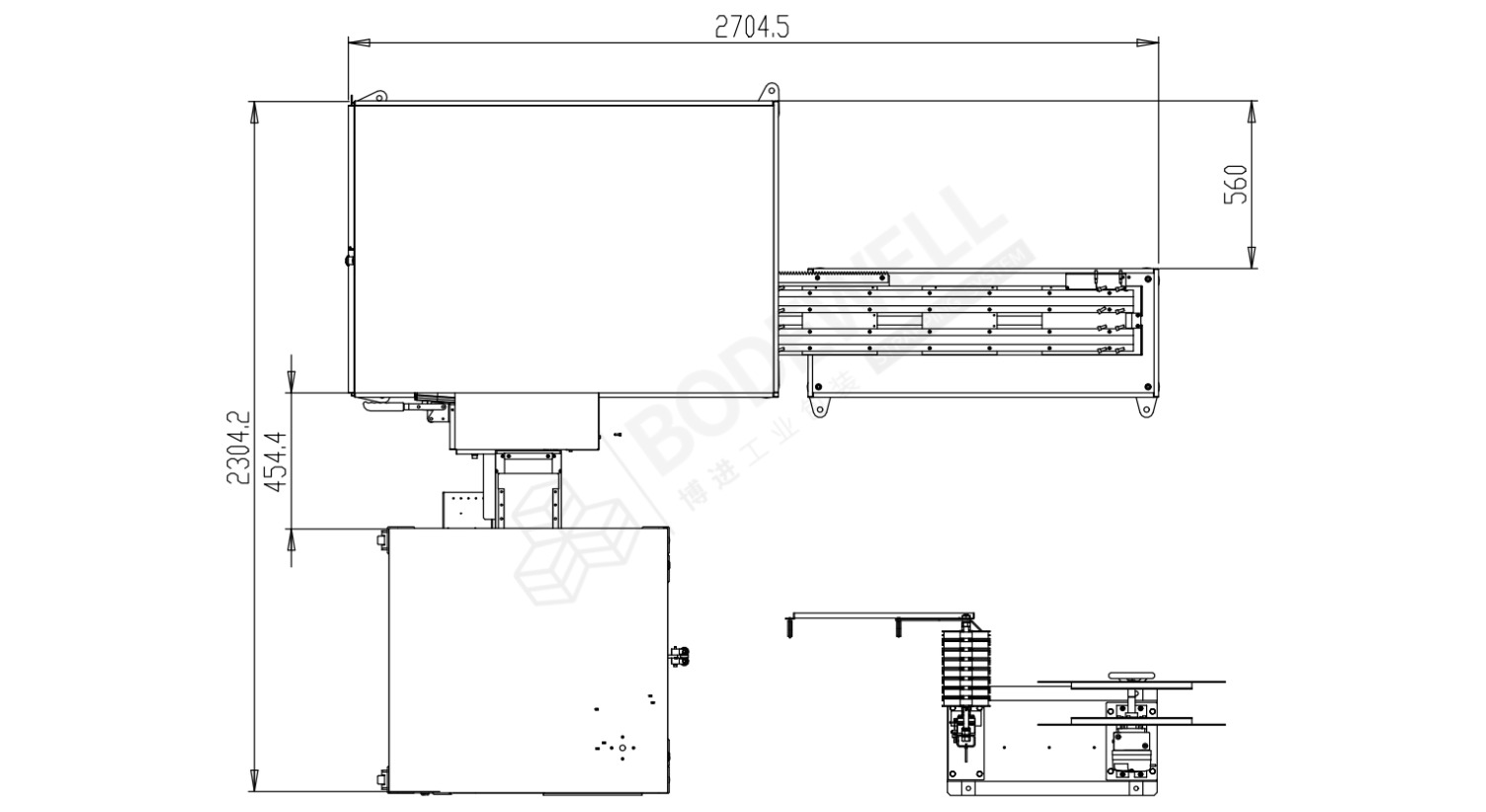

Top View

Top View
