Application Scenario: Goods that require horizontal strapping.
Wide application:

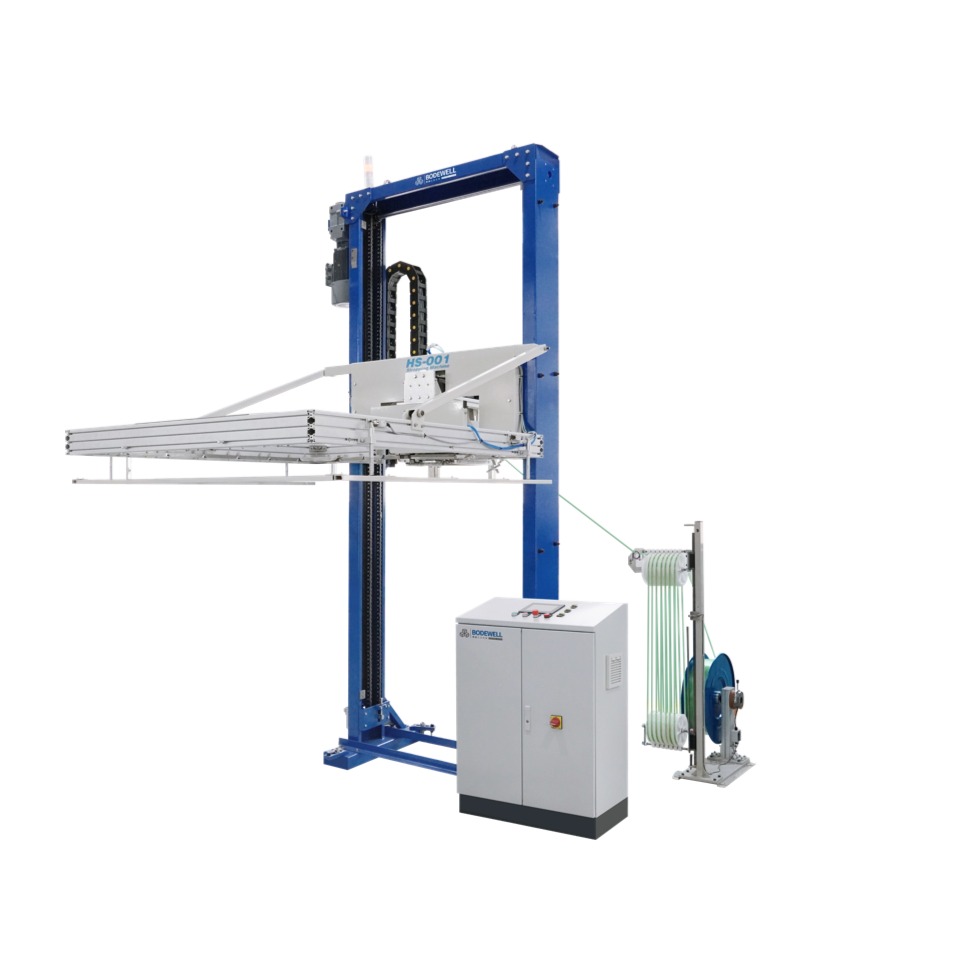

Universal horizontal strapping machine with welding mechanism located on the side of the goods.
Large span design:
Machine frame travel can reach 500mm, frame size can be customized as needed.
Strong compatibility:
Flexible adaptation to different sizes of goods.
| Item | Parameter |
|---|---|
| Applicable cargo dimensions | L(800-1200)×W(1000-1200)×H(500-1600)mm |
| PET strap specification | 1608 |
| Minimum strapping height | 200mm (above conveyor) |
| Tension force | 0-2500N/0-3500N |
| Machine weight | 0.8T |
| CT time (3 straps) | 45S |
| Power | 2.2KW |
| Frame size | 1700×1700mm |
