Application Scenario: Goods that require horizontal strapping, with the need for edge protection.
Extended model:

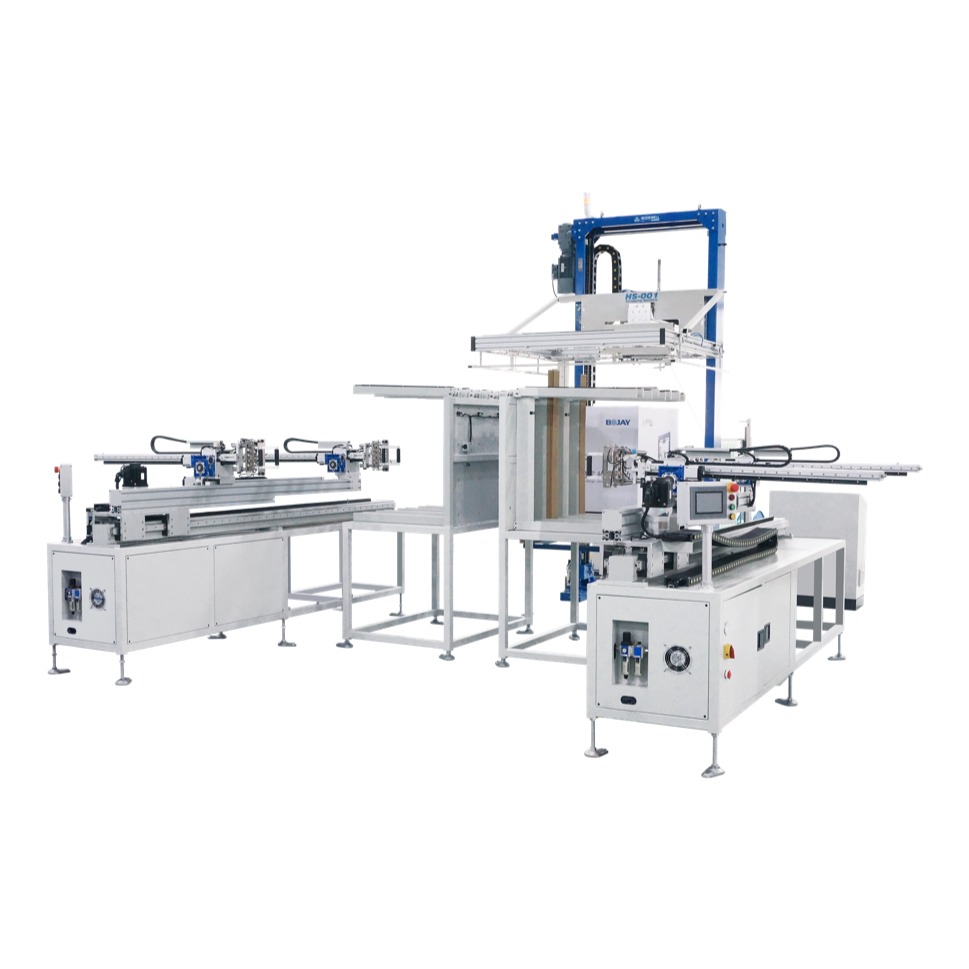

Upgraded configuration of the horizontal strapping machine, integrated with protect corner function.
Automatic protect corner allocation:
Equipped with 4 electric protect corner mechanisms, automatically completes the placement of protect corners.
Comprehensive protection:
Achieves perfect protection for all four corners of the goods, reducing transportation bump damage.
| Item | Parameter |
|---|---|
| Applicable cargo dimensions | L(800-1200)×W(1000-1200)×H(500-1700)mm |
| PET strap specification | 1608 |
| Minimum strapping height | 300mm (above conveyor) |
| Tension force | 0-2500N/0-3500N |
| Machine weight | 2.8T |
| CT time (3 straps) | 80S |
| Power | 5.2KW |
| Frame size | 1700×1700mm |
| Corner protector size | (700-1700)×(50-90)×(50-90)×(5-8)mm |
| Corner protector capacity | 45×8pcs |
