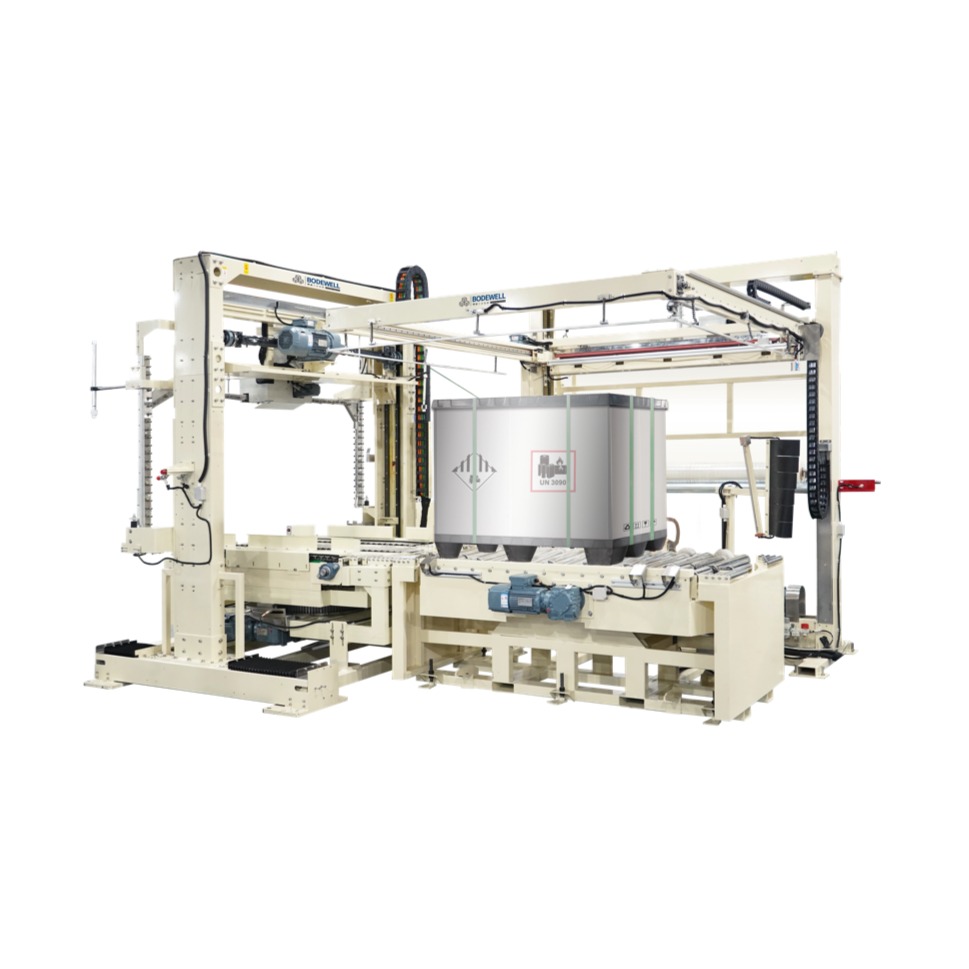

Vertical Strapping System
Conveyor System
Application Scenario: Flexible movement and multi-sided strapping of goods.
Entire machine is mobile:
Flexible deployment to adapt to multi-station operation needs.
Rotary table is standard:
Compatible with different sizes of goods, supports automatic strapping on 1 or 2 sides.
Strap feeding mechanism (optional):
No downtime for changing straps, reduces waste of consumables.
| Item | Parameter |
|---|---|
| Applicable cargo dimensions | L(800-1200)×W(800-1200)×H(500-1350)mm |
| Lance height | 500-800mm |
| Lance cross-sectional area | 30×50mm / 30×30mm (for 19mm strap: 30×60mm) |
| Power | 2.2KW |
| Tension force | 0-3500N |
| PET strap specification | 1608/1910 |
| Column width | 2200mm |
| Passable height | 500-1350mm (depending on cargo height) |
| Machine weight | 2.5T |
| CT time | 100S/pallet (for “#” type strapping) |
| Travel distance | 600mm |
| Rotary table diameter | 2000mm (max) |
